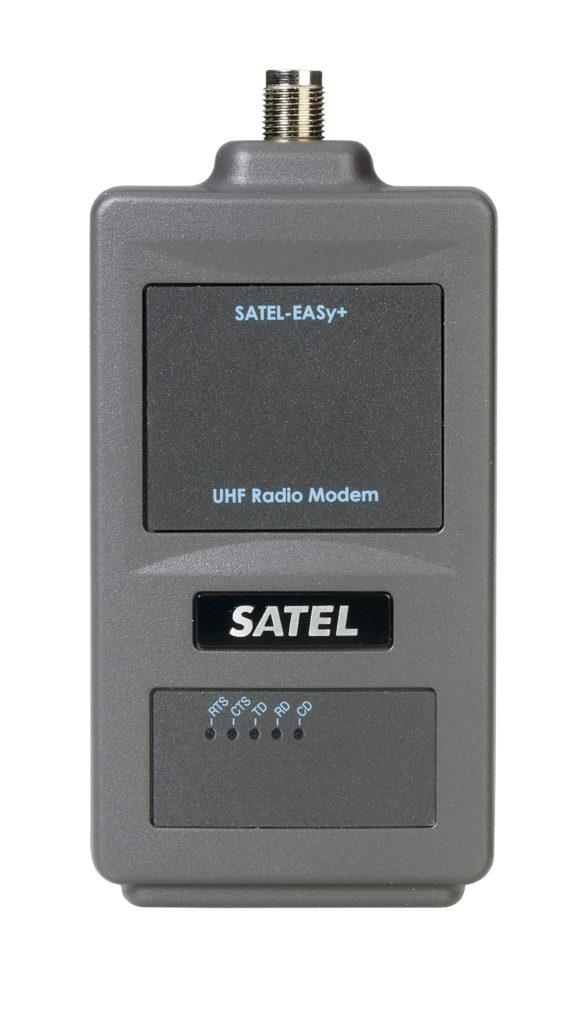

SATEL-EASY+

SATEL-EASY+

SATEL’s new product family, SATEL-EASy+!

SATEL-EASy+ offers a modern solution for various long-range applications. The first model uses 400 MHz frequency band, and it has an improved LCD display to enable easy configuration and more memory. Several interfaces will be available from serial (first variant) to USB.

  • 70 MHz tuning range (403 … 473 MHz)
  • Selectable channel spacing 12.5 / 20 / 25 kHz
  • Many options for configuration, e.g. through radio
  • Efficient diagnostics tools and accumulation of operation statistics data

SATEL-EASy+ will support the following software:

  • SATEL Configuration Manager (Configuration)
  • SATEL NMS PC (Configuration and monitoring)
  • SATEL SaTerm (Terminal SW for routing setup -configuration, SL commands and data tests)
  • SATEL NETCO Design (Configuration)

SATEL-EASy+ supports SATEL NMS PC and it is compatible with earlier radio modems operating in the same frequency range including SATELLINE-EASy, M3-TR4 based radios and SATELLINE-3AS NMS modems.

Downloads

Datasheet

*Key features

Frequency range 403 … 473 MHz
Tuning range 70 MHz
Channel spacing 12.5 / 20 / 25 kHz selectable
Modulation 4FSK, 8FSK, 16FSK, GMSK
Sensitivity BER <10E-3 (FEC ON) -116 dBm @ 12.5 kHz (4FSK) / -112 dBm @25 kHz (4FSK) / -106 dBm @25 kHz (16FSK)
Interface RS-232, -422, -485
Data speed of radio interface 9600 bps @ 12.5 kHz / 19200 bps @ 25 kHz (4FSK, FEC OFF)
7200 bps @ 12.5 kHz / 14400 bps @ 25 kHz (4FSK, FEC ON)
14400 bps @ 12.5 kHz / 28800 bps @ 25 kHz (8FSK, FEC OFF)
9600 bps @ 12.5 kHz / 19200 bps @ 25 kHz (8FSK, FEC ON)
14400 bps @ 12.5 kHz / 28800 bps @ 25 kHz (16FSK, FEC ON)
Carrier power 0.01 … 1 W
Data speed of serial interface 1200 – 115200 bps
Encryption support AES128 as default / AES256 as an order option
Operating voltage range +7 … +27.5 Vdc (-15% / +20%)
Power consumption < 1.5 W (receive)
< 5.5 (transmit 1 W)
< 0.05 W (standby)
Size/Weight 138 x 67 x 29 mm / < 350 g
Connectors TNC, 50 ohm, female
